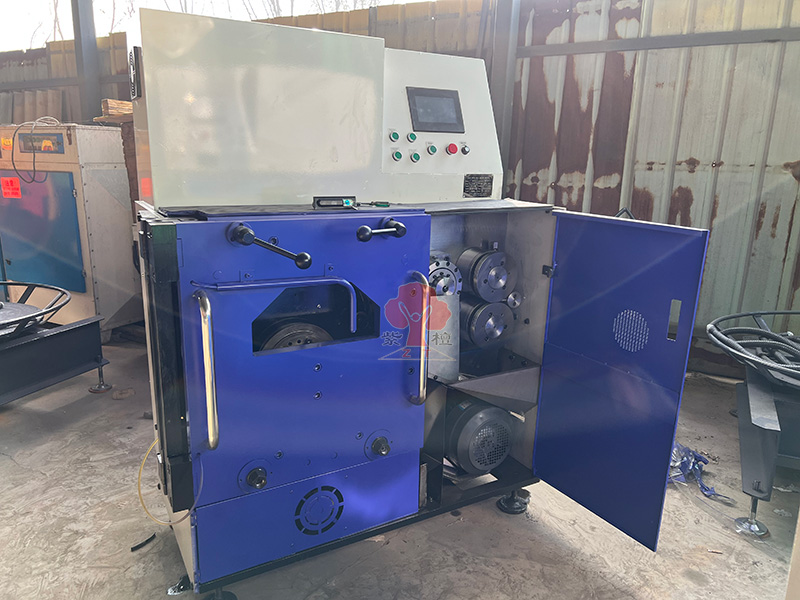

ZSX Series High Speed Nail Making Machine
The ZSX series high speed nail making machine is designed for the automatic production of wire nails. It uses PLC control and eight built-in sensors to monitor machine operation and automatically stop the machine when a fault is detected.
The machine works through coordinated wire feeding, cutting, and nail head forming processes to produce nails with consistent dimensions.
The series includes five models: ZSX50, ZSX90, ZSX130, ZSX150, and ZSX210. Different models are available for different nail lengths, wire diameters, and production capacities, with a maximum speed of up to 800 pcs/min on the ZSX50 model.
Parameters of ZSX-Series High Speed Nail Making Machine 800 pcs/min
Compare the specifications of the five ZSX models below to find a machine suitable for your required nail length, wire diameter, and production capacity.
| Model | Power | Nail Length | Wire Diameter | Speed (psc/min) | Hourly Output | Machine Weight |
|---|---|---|---|---|---|---|
| ZSX50 | 7.7KW | 25-60mm | 1.8-2.6mm | 750-800 | 27-120kg | 2800kg |
| ZSX90 | 7.7KW | 38-90mm | 2.2-3.4mm | 700-750 | 70-230kg | 2800kg |
| ZSX130 | 9.9KW | 70-130mm | 2.8-4.5mm | 550-600 | 120-400kg | 3000kg |
| ZSX150 | 13KW | 80-150mm | 3.5-5.5mm | 450-500 | 200-600kg | 3400kg |
| ZSX210 | 13KW | 100-210mm | 3.5-5.5mm | 380-430 | 220-800kg | 4200kg |
High Speed Nail Making Machine Working Video
Watch the X130 model in operation, including a full machine view, close-up shots of the nail-making process, and finished nail size measurements.

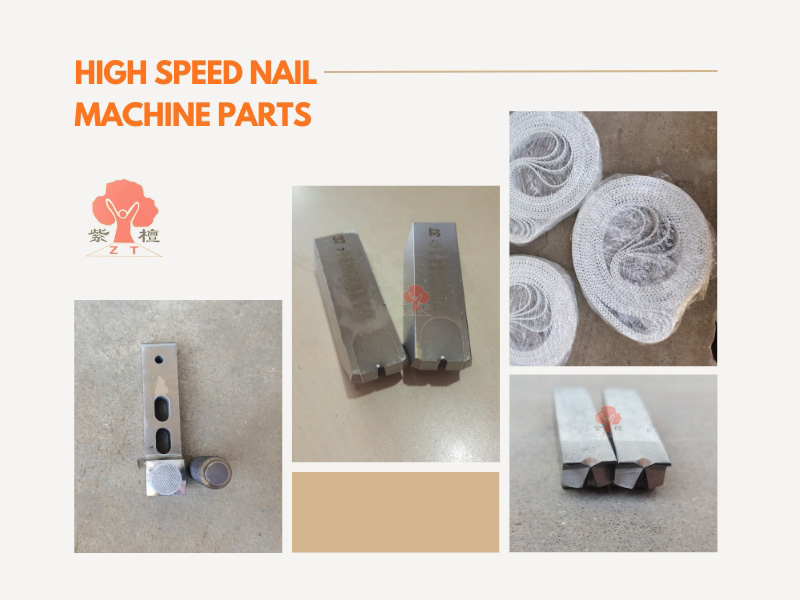

Main Spare Parts of High Speed Nail Making Machine
The following are the main parts of the ZSX series high speed nail making machine:
- Nail Conveying Belt:
Works with the nail forming components to hold, position and transfers nails during production. Estimated service life: 3–5 months.
- Main Drive Belt:
Transmits power from the motor to the main drive system. Estimated service life: 1–2 years.
- Nail Die (Nail Mold):
Holds the steel wire during nail forming. Estimated service life: 2–3 months.
- Nail Cutter:
Cuts the wire and forms the nail point. Estimated service life: 1–2 months.
- Punch & Pre-punch:
Used to form the nail head. Estimated service life: 1–2 months.
Actual service life varies depending on wire material, production conditions, and maintenance. Regular inspection and keeping common spare parts in stock can help reduce downtime.
High Speed Nail Making Machine Price
The reference price of a ZSX series high speed nail making machine is approximately USD 15,000–25,000 per set, depending on the model and configuration.
The final price varies according to the required nail length, wire diameter, production capacity, and machine configuration.
Please contact us with your nail specifications and production requirements for a detailed quotation.
