Concrete Nail Making Machine

Concrete Nail Making Machine – Z94-4C Model

💡 High-Speed Automatic Equipment for Producing Concrete & Cement Nails (25–100mm)

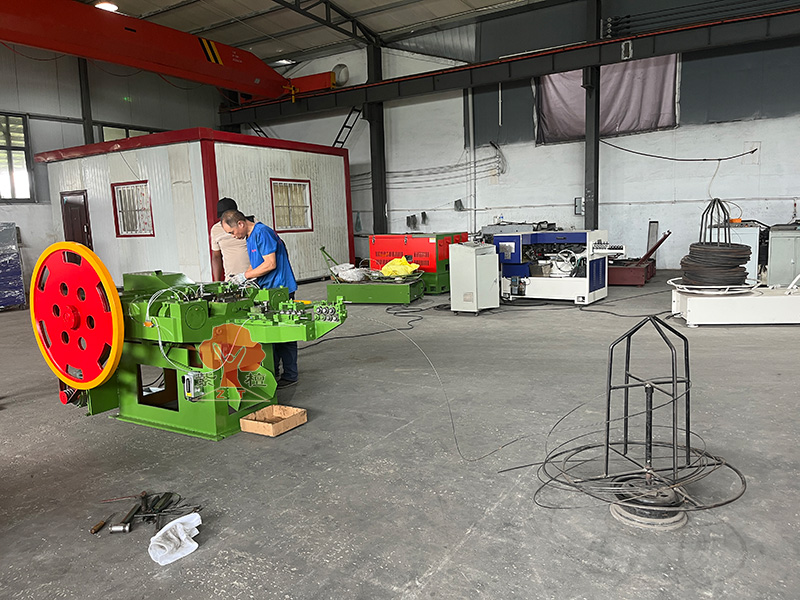

Overview of Z94-4C Concrete Nail Machine

Our Concrete Nail Making Machine, also known as a Cement Nail Machine, is designed for the high-speed production of high-strength concrete nails using high- or medium-carbon steel wire (such as 60# or 55# steel). With durable components and automated control, it ensures precise and efficient manufacturing of cement nail length from 1 to 4 inches (25–100mm).

Whether you are entering the fastener industry or upgrading an existing line, the Z94-4C model delivers the ideal combination of productivity, stability, and cost-effectiveness.

Technical Specifications of Concrete Nail Making Machine

Details of Z94-4C model for cement nail manufacturing

Key Features of the Z94-4C Nail Machine for Cement Nail Production

Benefits of our concrete nail making equipment:

1. ⚙️ Fully Automatic Process: Feeding, cutting, and forming in one cycle
2. 📏 Flexible Nail Size: Adjustable for different nail lengths and diameters

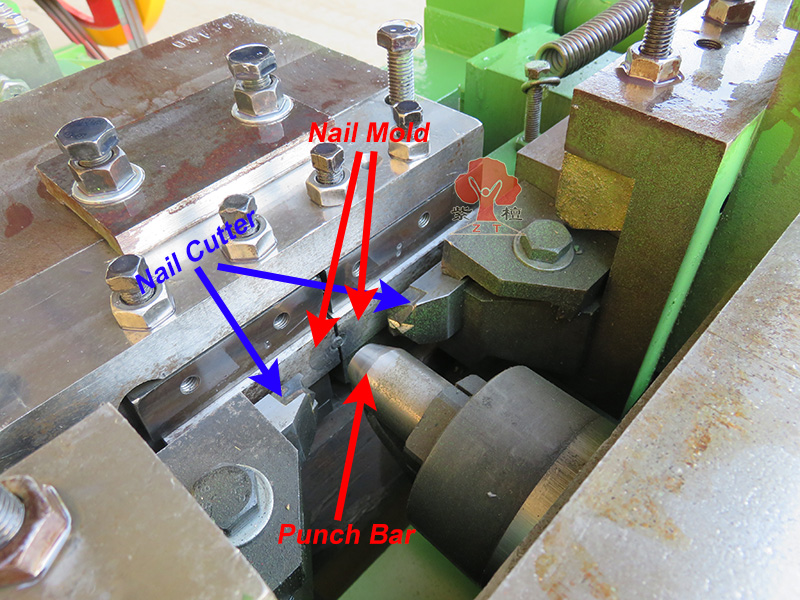

3. 🔩 Quick Die Change: Easy to switch sizes for different production batches
4. 💡 Energy Efficient: Low power consumption with a 4kW motor
5. 🧱 Rugged Design: Built with heavy-duty steel for long-term industrial use

Recommended Concrete Nail Production Line Setup

For high-efficiency concrete nail manufacturing, we recommend pairing the Z94-4C Concrete Nail Making Machine with the following machines to build a complete production line:

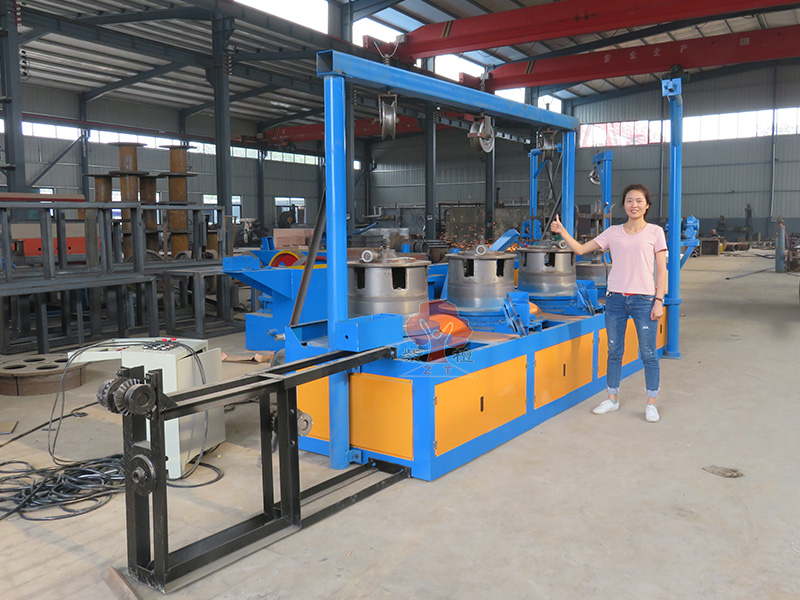

• Wire Drawing Machine – To draw raw steel wire into the required diameter
• Annealing Furnace – To soften drawn wire and improve ductility for the next fine drawing process
• Concrete Nail Making Machine (Z94-4C) – Main equipment for cutting and forming concrete nails
• Nail Polishing Machine – To clean, smooth, and brighten nail surfaces for galvanizing
• Belt Type Heat Treatment Furnace – To harden and temper nails, enhancing strength and durability
• Nail Galvanizing Equipment – Applies a zinc coating to prevent rust and enhance corrosion resistance
• Nail Packaging Machine – For automatic cement nail counting, weighing, and paper box/bagging

✅ We provide full production line design, technical support, and turnkey installation services tailored to your factory needs.

💡 Customizable production lines are available based on your target nail sizes, capacity requirements, and surface treatment needs.

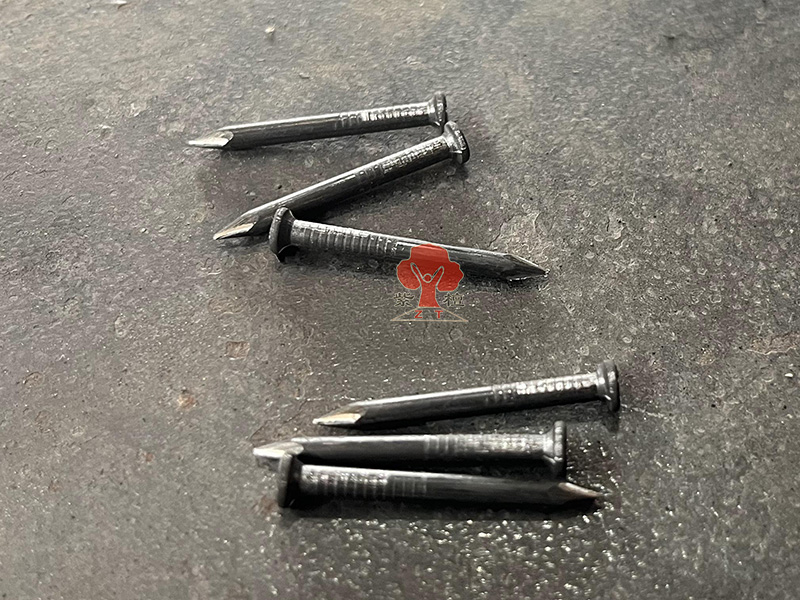

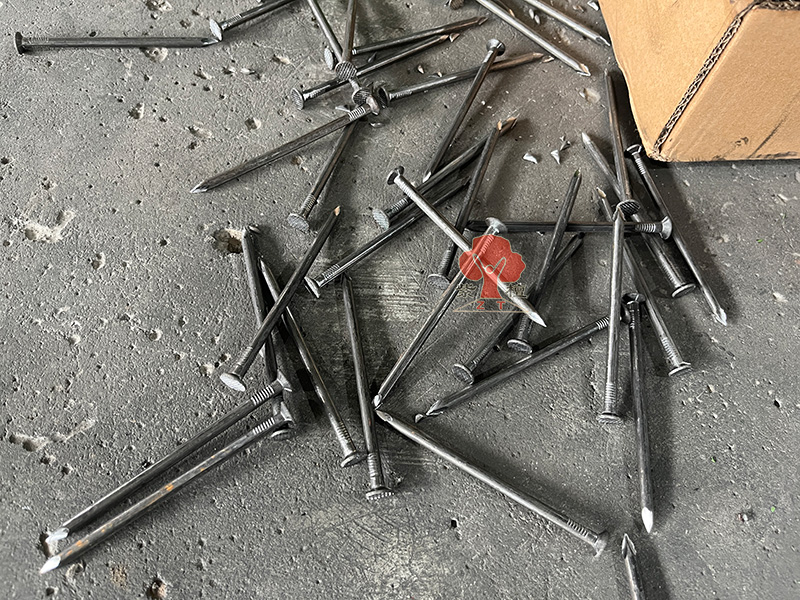

Applications of Concrete & Cement Nails

Concrete and masonry construction
Formwork and wooden frame fastening
Furniture assembly
Hardware manufacturing and export
……
