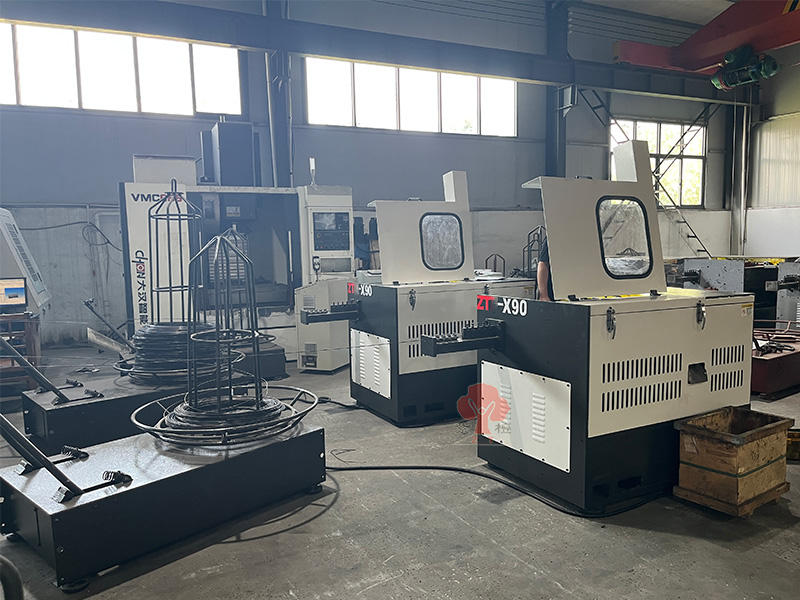

X90 High Speed Clout Nail Making Machine
The high speed clout nail making machine (Model X90) is an upgraded model based on traditional X90 high-speed series, engineered specifically for stable and precise production of clout nails with large flat heads.
Compared to standard models, this X90 clout nail machine features reinforced bearings, an optimized die system, enhanced feeding stability, and a stronger machine frame—making it highly capable of handling the high impact, wide nail head forming, and feeding accuracy required for clout nail production.
At the same time, the machine offers dual-purpose capability, allowing users to switch quickly to common wire nail production, making it a cost-efficient choice for manufacturers handling multiple nail types with high output quality and consistency.
Technical Specifications for High Speed Clout Nail Making Machine
| Item | Specification Range |
|---|---|
| Model | X90 High Speed Clout Nail Making Machine |
| Motor | 5.5/1.5kw |
| Speed | 600-800pcs/min |
| Nail Head Diameter | 8mm-12mm |
| Nail Shank Diameter | 2.5mm-4.5mm |
| Nail Length | 25mm-80mm |
| Wire Type | Q195 / Q235 Low Carbon Steel |
| Machine Dimension | 1350x1050x1100mm |
Nail Types Supported by X90 High Speed Clout Nail Making Machine
| Nail Type | Supported | Description |
|---|---|---|

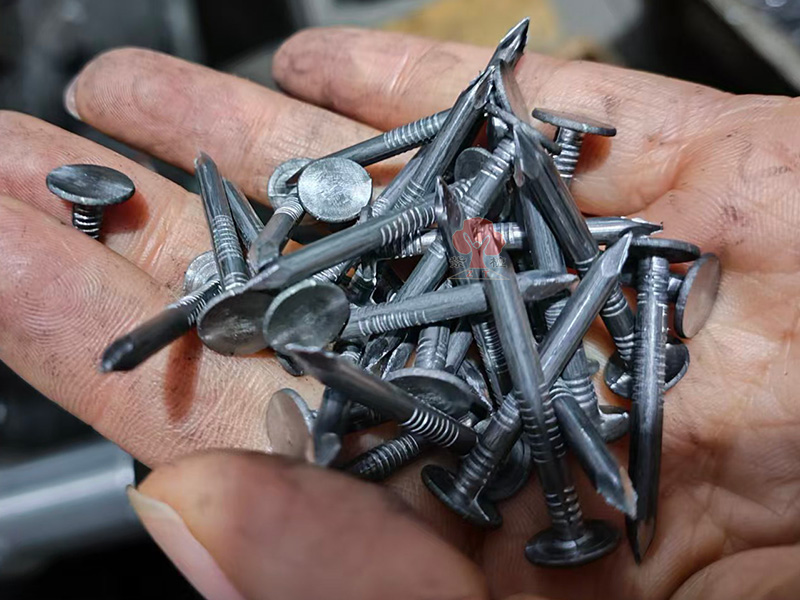

| Clout Nails | ✅ | Large head clout nails used for roofing, insulation, wood fastening |
| Common Nails | ✅ | Fast and easy die switch for wire nail production |
🔹 The X90 high speed nail machine for clout nails is optimized for large head clout nail forming, but can quickly switch to common nail production.
Key Advantages of High Speed Clout Nail Making Machine
- Reinforced Structure for Clout Nail Production
Upgraded bearings, die system, and feeding structure for durability and forming precision. - High Forming Accuracy
Precise head shaping with a low defect rate. - Dual-Purpose: Clout Nails & Common Nails
Supports clout and common nails with fast die changeover. - Simple Operation & Low Maintenance
Proven mechanical design, operator-friendly interface, and accessible spare parts.
Request More Information or a Quote for Your Clout Nail Production Line
The X90 high speed clout nail making machine is priced a few thousand USD higher than standard models due to its reinforced structure for clout nail production.
Contact us for detailed specifications, pricing, or customization options！
