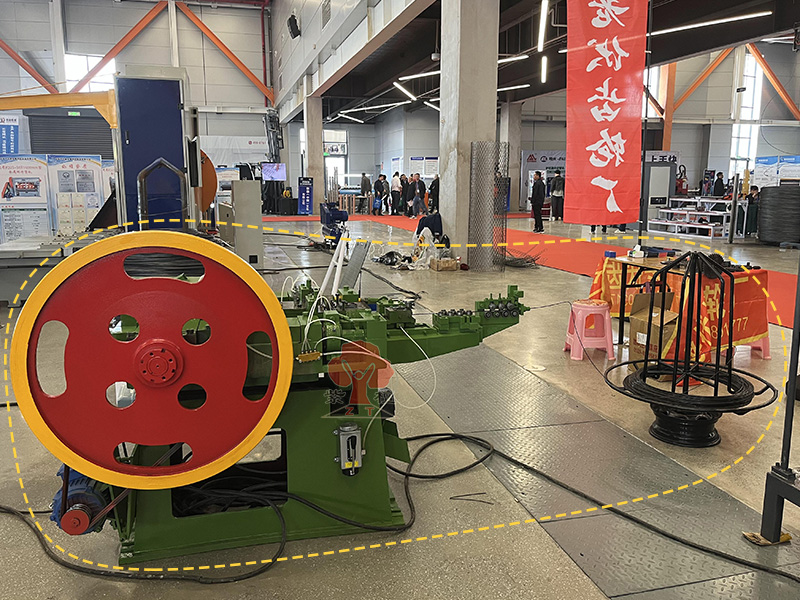

Z94-C Series Automatic Nail Making Machine for 1-6 Inch Wire Nail Production

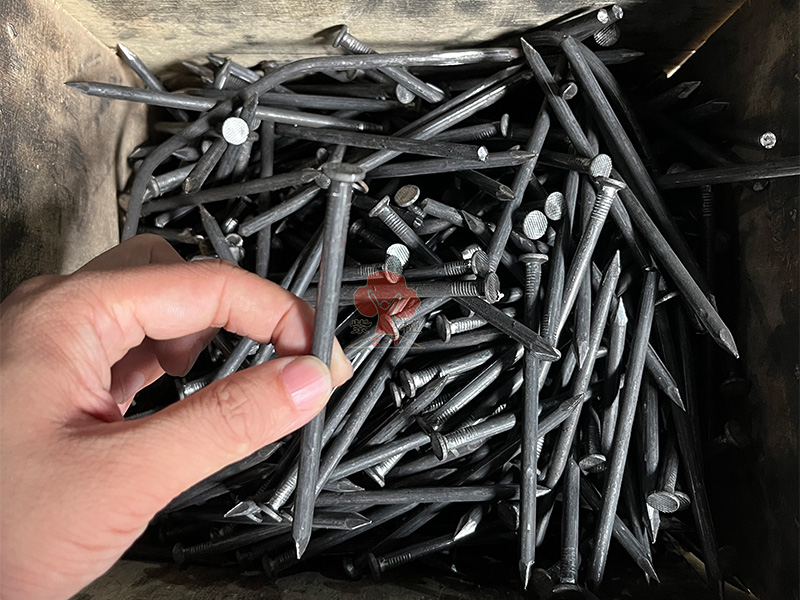

The 1-6 inch wire nail making machine is a fully automatic mechanical equipment used to process Q195 or Q235 wire rods into common iron wire nails. It supports various nail types including common nails, coil nails, D-type nails, clout nails, and concrete nails, etc. This machine is widely used on the market due to its reliability, automation, and support for nail lengths from 1 inch to 6 inches (25–150mm).
Important Note: One Machine ≠ All Sizes
Although this series is called a “1–6 inch nail making machine”, one single machine cannot cover all sizes.

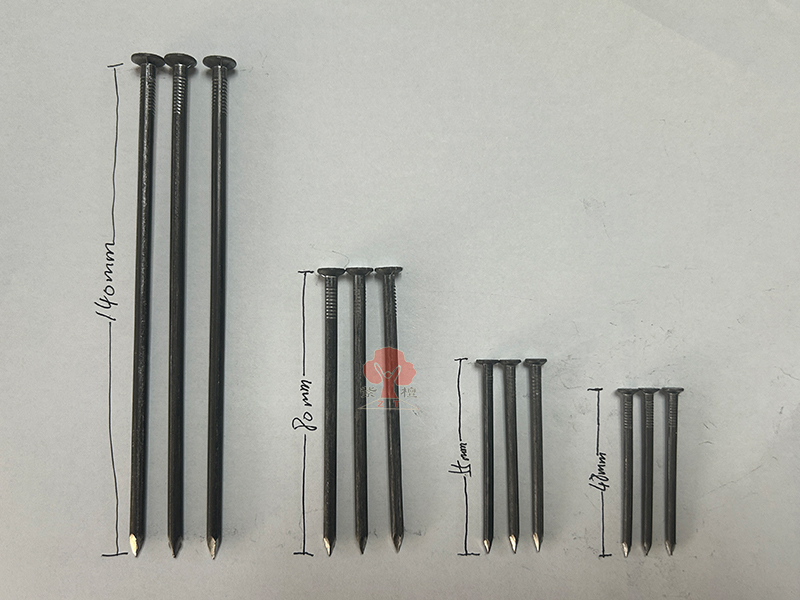

Different nail lengths and diameters need to match the corresponding models to ensure output, stability and mold life. We will help you accurately recommend the most suitable model based on the nail size, raw material wire diameter and daily output requirements you produce to avoid equipment overload or waste of production capacity.

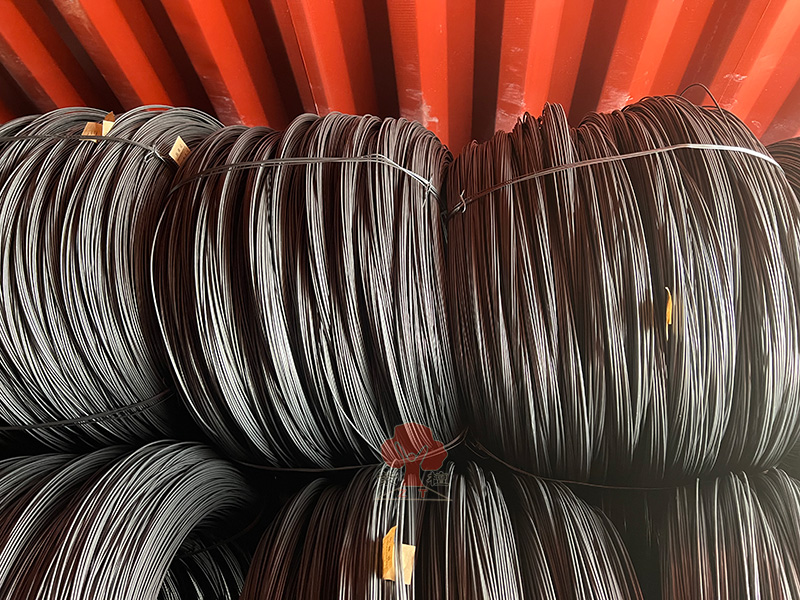

Applicable Raw Materials for Nail Making
Low Carbon Steel Wire (such as Q195, Q235)
Medium Carbon Steel Wire (Needs Annealing)
Galvanized Wire (such as Coiled Nails Production)
…

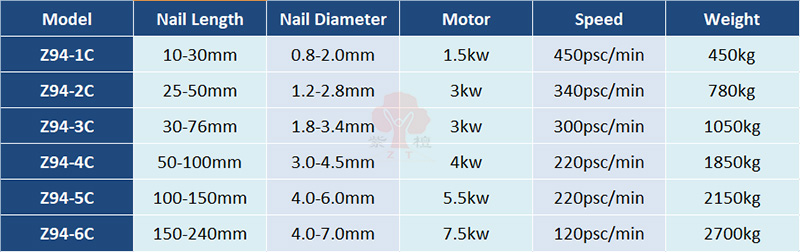

1-6 Inch Wire Nail Making Machine Specification
Notes: Longer nails and thicker wires require higher-power models to ensure stable performance.

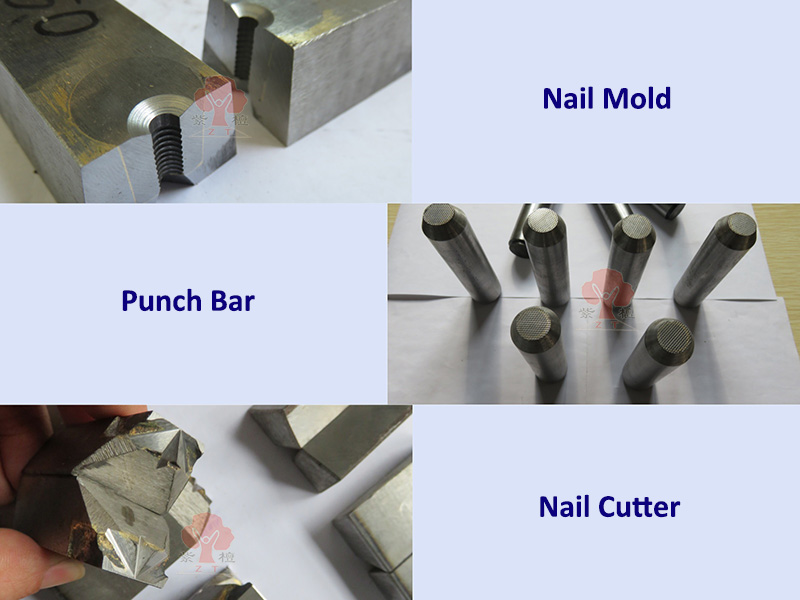

1-6 Inch Wire Nail Making Machine Spare Parts
Nail Cutter + Nail Mould/Nail Die + Pin Punch/Punch Bar

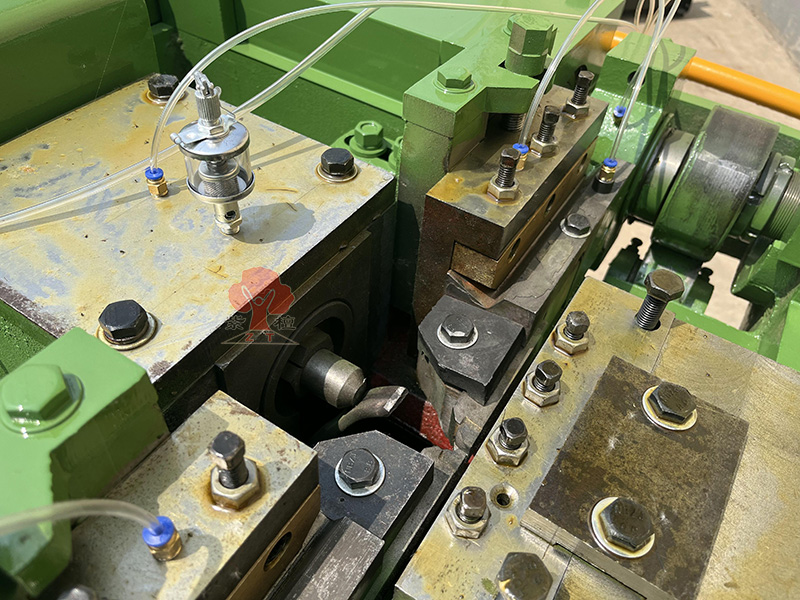

Z94-C Series Nail Making Machine Workflow
The Z94-C Series nail making machine operates in three key steps:
- Automatic Wire Feeding: Wire is continuously fed into the machine from the wire pay-off. The system ensures stable, straight wire delivery.
- Nail Head Forming: The nail die clamps the wire, and the punch presses one end into a nail head.
The nail head style can be customized — e.g., logos, letters, symbols — according to customer needs. - Nail Tip Forming: The wire is cut to the set length using a nail cutter, and the nail tip is formed during the cutting process.
Automatic 1-6 Inch Wire Nail Making Machine Price
Reference Price Range: USD 2,000-7,000/set
The prices of different models of the Z94-C series (such as Z94-2C, Z94-4C, Z94-6C) vary according to the following factors:
- Machine Model (adapted to different nail lengths/wire diameters)
- Number of Matching Molds and Customization Requirements
- Whether you need a full nail production line (such as Wire Drawing Machines, Nail Polishing Machines, Nail Packaging Equipment, etc.)
- Order Quantity & Shipping Destination (affects transportation and customs clearance costs)
Please contact us with your nail specifications and daily output needs to receive your quotation!
